Ritchey WCS Carbon Road Fork

Ritchey WCS Carbon Road Fork
This item is currently not available.

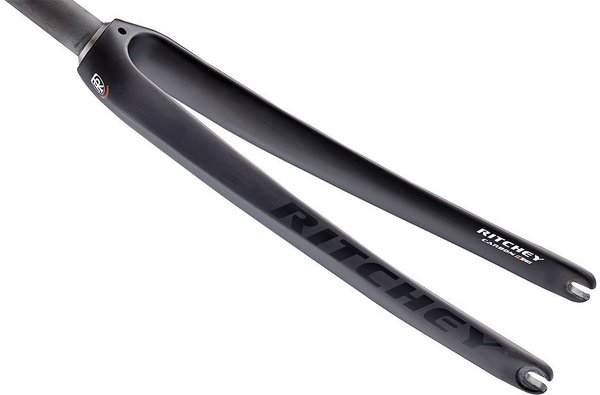

The one-piece carbon monocoque WCS Carbon Road Fork has been meticulously engineered and painstakingly built to perform with razor-sharp accuracy, and offer a comfortable yet lively riding experience. Built with High Modulus Fiber (HMF), this impeccable road fork offers superior strength and a superb road feel. Smooth internal fiber flow in the crown/steerer area delivers the best force transfer from crown to shaft and increased impact strength. The orientation of the fibers have been optimized to absorb and dissipate loads, which delivers a confident and comfortable ride. The fork also uses various fiber types to manage the different load types—such as side load, torsion, and impact— encountered at different parts of the fork. The WCS Carbon Road Fork includes a compression plug and fits up to 28c tires, depending on tire make and model.

- 45mm crown is sized for integrated headsets, also looks good with conventional headsets
- Designed so that the entire fork dissipates loads, reducing stress on the crown
- Carbon monocoque construction with aluminum dropouts
- Blade: Carbon
- Crown: Carbon
- Steerer: Carbon
- Steerer Length: 300mm
- Steerer Diameter: 1 1/8-inch
- Rake: 43/46mm
- Crown Diameter: 45mm
- Axle-to-Crown: 368mm
- Finish: UD Matte
- Weight: 325g w/ uncut steerer
